SPON GEN-3101A01

Network Audio Bridge

  • 15W -8 Ohms
  • POE power supply
  • Indoor Only
  • Frequency Response: 50Hz-20kHz
  • Product Weight: 0.16kg
  • Product Dimension: 126x66x27mm
  • 2 Year Warranty

Download Technical Specifications

Description

GEN-3101A01 Network Audio Adapter – Upgrade Any Speaker or Amplifier to Network Audio

The GEN-3101A01 Network Audio Adapter is a compact and intelligent solution that transforms any passive speaker or amplifier into a fully network-enabled device. No matter the brand or design, your existing audio equipment can now access the same advanced network audio features as SIPLINK network audio terminals.

This versatile network adapter for audio systems is designed for easy installation near speakers or amplifiers, with multiple mounting options to suit different setups. A single PoE-enabled cable connects the device to your IP network, simplifying wiring and ensuring quick, efficient deployment.

Equipped with a built-in 15W power output and standard audio output interface, the GEN-3101A01 network adapter is compatible with analog constant voltage speakers and amplifiers from any brand. This allows seamless integration with your current sound systems—no need to replace existing equipment. With this network audio adapter, you can enjoy a smart upgrade to IP-based audio, ensuring a smoother transition and more efficient, future-ready deployment.

Technical Specification

Parameter
Specification
Power Supply
POE, 802.3af/at
Standby Power Consumption
Less than 3W
Network Protocols
TCP/IP, SIP, UDP, ARP
Audio Encoding
G.711-A, G.711-U
Power Output
15W @ 8Ω
Frequency Response
50Hz~20KHz
Signal-to-Noise Ratio
≥85dB

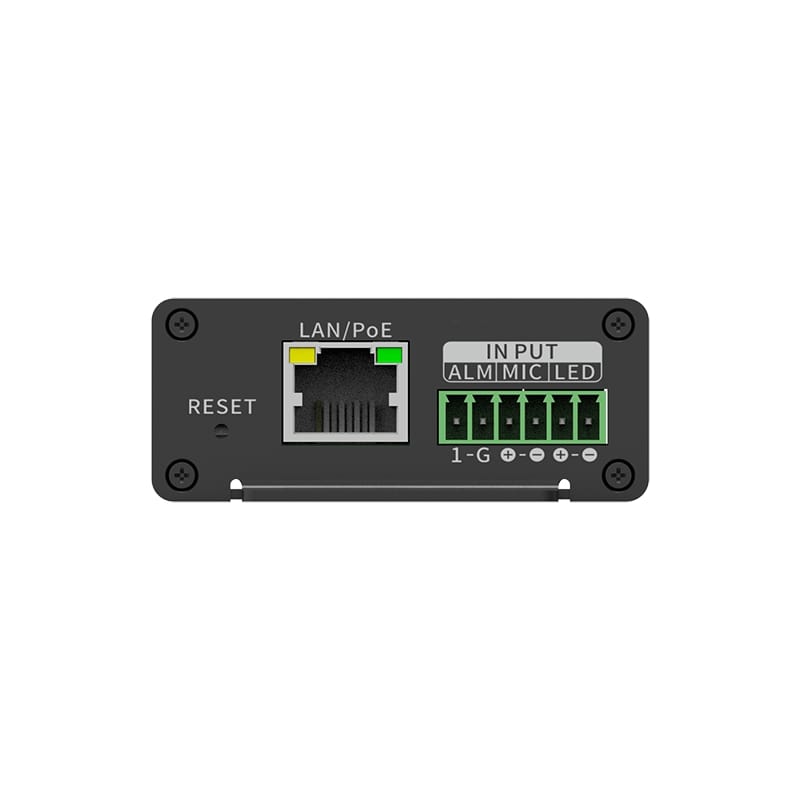

Interfaces
Ethernet Port *1, RCA Line Output *1, Power Output *1
Operating Temperature
-10°C to 55°C
Product Dimensions
126x66x27(mm)
Product Weight
0.16Kg
