iFix8

$768.90 Excl. GST

The iFIX8 reproduces full range music and speech with superb quality thanks to its 8” coaxial transducer that delivers the whole spectrum homogeneously to the audience. The included frame and gimbal can be used with / without a bracket or for direct installation. To extend to lower frequencies, iFIX13S, of the same range, is the natural companion. It’s a small packed but powerful sub woofer, using a custom made 13.5″ chassis with the same power and impact as a 15″ woofer.

16 in stock

Description

When an ultra compact solution for sound reinforcement is needed the iFIX range is the perfect product. It integrates seamlessly in any installation were discretion is key, without sacrificing performance.

The iFIX8 reproduces full range music and speech with superb quality thanks to its 8” coaxial transducer that delivers the whole spectrum homogeneously to the audience.

The included frame and gimbal can be used with / without a bracket or for direct installation.

To extend to lower frequencies, iFIX13S, of the same range, is the natural companion. It’s a small packed but powerful sub woofer, using a custom made 13.5″ chassis with the same power and impact as a 15″ woofer.

Both together, iFIX8 and iFIX13S are the perfect fit for nearly all demanding installations, from conference centers to jazz and music bars.

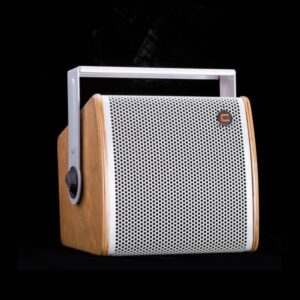

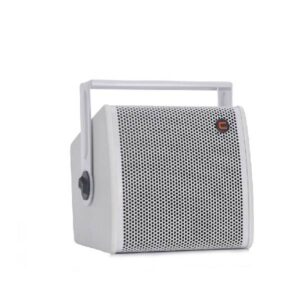

The whole range is available as standard in white, black and natural wood finish*. Also all RAL colors are available on demand to ensure the best possible integration to the decoration. *(RAL and Natural wood finish extra)

Each speaker in the  iFix range is shipped with its own multi-function indented Yoke bracket.

Features

  • High output SPL and sensitivity
  • One 8″ high powered low frequency driver
  • One 1.7″ HF compression driver
  • 80 Degree Conical Dispersion
  • Cabinet design for FOH use
  • Powder coated grill with foam backing
  • Birch Plywood tongue and groove construction
  • Durable Polyurethane textured base paint
  • Ultra Compact Installation speaker

Cabinet Dimensions

iFix8 cabinet dimention

 Cabinet Specifications

Transducers: Low Frequency: 8″
High Frequency:1.7″
Frequency Response (-3dB): 95Hz-18KHz
Sensitivity (1W/1m): 94dB/1W/1m
Maximum SPL (calculated): 116dB RMS / 122dB Peak
Crossover Frequency: 2.2 KHz passive
Dispersion (H x V): 80 Degrees Conical
Rated Power (RMS): 150W
Rated Impedance: 12ohm
Speaker Connectors Terminal Posts
Net Weight: 6Kg
Gross Weight: 8Kg
Dimensions (W x D x H): 243 x 250 x250mm
Packaging Dimensions 1pcs/pack:
(W x D x H)
320 x 330 x 340mm
Warranty: 3 Years
