iFix10

$1,050.00 Excl. GST

The iFIX10 reproduces full range music and speech with superb quality thanks to its 10” coaxial transducer that delivers the whole spectrum homogeneously to the audience. The included frame and gimbal can be used with / without a bracket or for direct installation. To extend to lower frequencies, iFIX13S or iFix17S Subwoofers of the same range, are the natural companions. They a small packed but powerful sub woofers, using a custom made 13.5″/17″ chassis with the same power and impact as a 15″/18″woofer.

16 in stock

Description

When an ultra compact solution for sound reinforcement is needed the iFIX range is the perfect product. It integrates seamlessly in any installation were discretion is key, without sacrificing performance.

The iFIX10 reproduces full range music and speech with superb quality thanks to its 10” coaxial transducer that delivers the whole spectrum homogeneously to the audience.

The included frame and gimbal can be used with / without a bracket or for direct installation. To extend to lower frequencies, iFIX13S or iFix17S Subwoofers of the same range, are the natural companions. They a small packed but powerful sub woofers, using a custom made 13.5″/17″ chassis with the same power and impact as a 15″/18″woofer.

Both together, iFIX10 and iFIX13S/17S are the perfect fit for nearly all demanding installations, from conference centers to jazz and music bars. The whole range is available as standard in white, black and natural wood finish*.

Also all RAL colors are available on demand to ensure the best possible integration to the decoration. *(RAL and Natural wood finish extra)

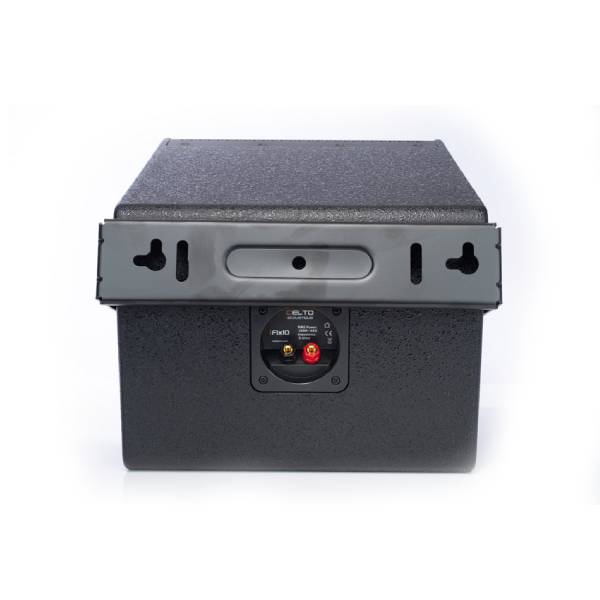

Each speaker in the  iFix range is shipped with its own multi-function indented Yoke bracket.

iFix10 Speakers Features

  • High output SPL and sensitivity
  • One 10″ high powered low frequency driver
  • One 1.7″ HF compression driver
  • 75 Degree Conical Dispersion
  • Cabinet design for FOH use
  • Powder coated grill with foam backing
  • Birch Plywood tongue and groove construction
  • Durable Polyurethane textured base paint
  • Ultra Compact Installation speaker

Cabinet Dimensions





Cabinet Specifications

Transducers: Low Frequency: 10″
High Frequency:1.7″
Frequency Response (-3dB): 90Hz-18KHz
Sensitivity (1W/1m): 97dB/1W/1m
Maximum SPL (calculated):  121dB RMS / 127dB Peak
Crossover Frequency: 1.8 KHz passive
Dispersion (H x V): 75 Degrees Conical
Rated Power (RMS): 250W
Rated Impedance: 8ohm
Speaker Connectors Terminal Posts
Net Weight: 8Kg
Gross Weight: 11Kg
Dimensions (W x D x H): 300 x 300 x301mm
Packaging Dimensions 1pcs/pack:
(W x D x H)
360 x 360 x 360mm
Warranty: 3 Years
