Description
CT15X Features
- Real 800W RMS power capacity (8 hours pink noise)
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and out axis
- Really deep bass for his category
- Premium custom made European Drivers
- Proprietary 80ºx50º rotatable Elliptic horn
- Birch plywood cabinet with tongue & groove assembly
- Touring grade soft touch gloss-free black painting
Applications
CT15X loudspeaker system is suitable for near and medium field main PA reinforcement with or without subwoofer, portable system or permanent installation, monitor on stages, and delay fill.
Suitable for:
- FoH
- Multi-functional room
- Auditorium and Theater
- Nightclub
- Pub
- Bar
- Commercial Announcements
Cabinet Dimensions
Cabinet Specifications

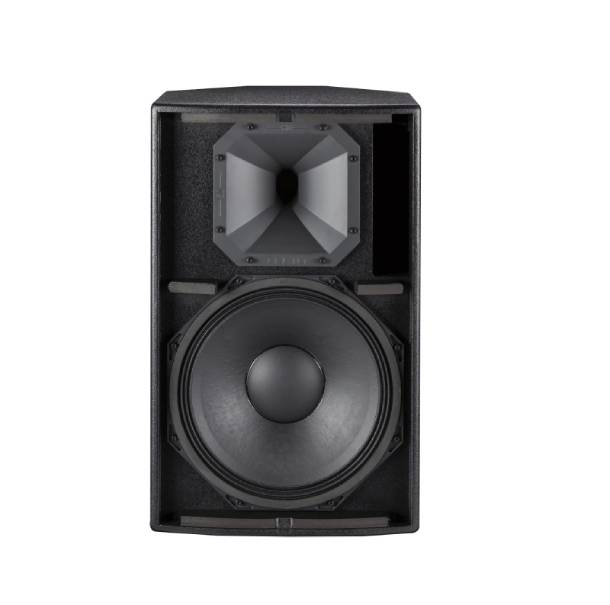

| Transducers: | Low Frequency: 15″ 4″ voice coil High Frequency: 1.5″ exit 2.8″ voice coil |
|---|---|
| Frequency Response (-3dB): | 40Hz-19KHz full range mode, 80-120Hz with subwoofer |
| Sensitivity (1W/1m): | 98dB/1W/1m (200-16000Hz) |
| Maximum SPL (calculated): | 127dB RMS / 130dB Peak |
| Crossover Frequency: | 1.4 KHz passive |
| Dispersion (H x V): | 80 x 50 above 1400Hz |
| Rated Power (RMS): | 300W / 600W Program |
| Rated Impedance: | 8ohm |

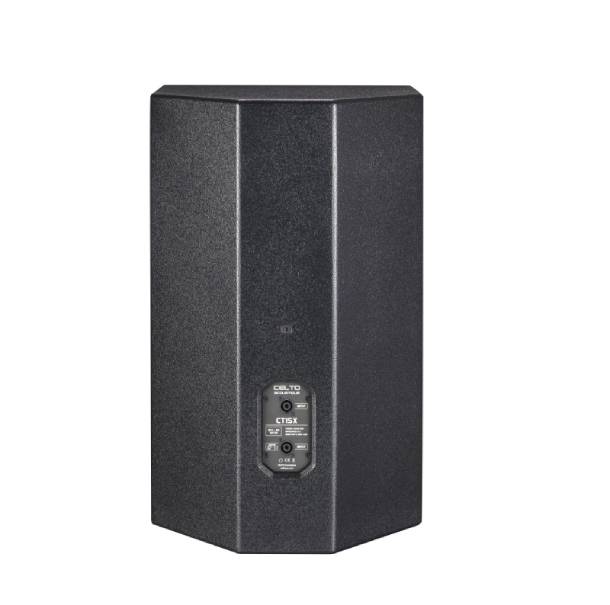

| Speaker Connectors | 2 x Nuetrik Speakon NL4MP |
| Flying Hardware | 7 x M8 points |
| Pole Mount | 35mm top hat |
| Floor Monitor | Yes , 2 symmetric angles |
| Net Weight: | 34Kg |
| Gross Weight: | 41Kg |
| Dimensions (W x D x H): | 445 x 710 x414mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
550 x 800 x 510mm |
| Warranty: | 3 Years |
