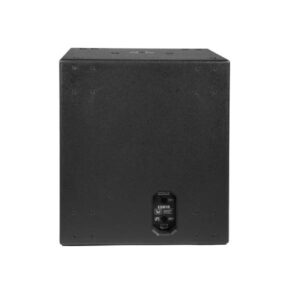

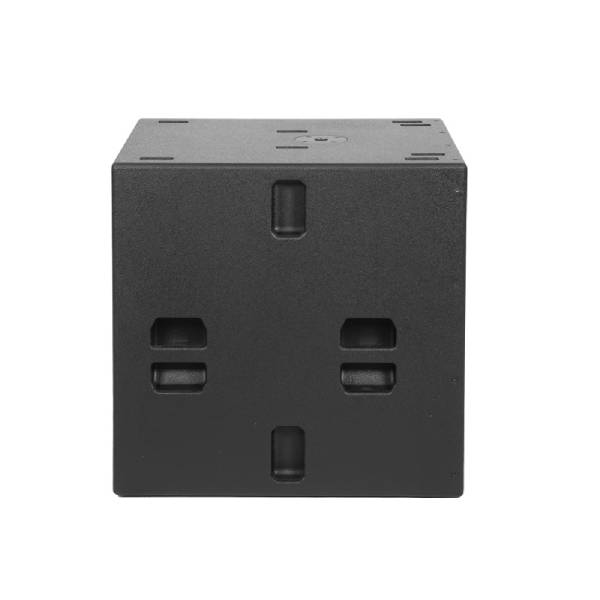

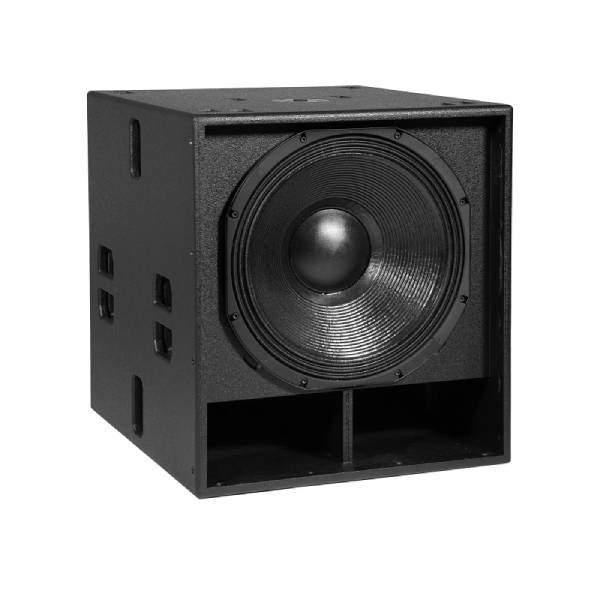

CSW118 General Purpose Subwoofers

$1,899.00 Excl. GST

Suitable for:

  • Stadium and arena
  • Multi-functional room
  • Auditorium and Theater
  • Night club
  • Bar
  • High-end Karaoke room

4 in stock

Description

CSW118 subwoofer is suitable for bass reinforcement for main PA systems,
touring or permanent installations for small to large stages, indoor or outdoor live performances.

Suitable for:

  • Stadium and arena
  • Multi-functional room
  • Auditorium and Theater
  • Night club
  • Bar
  • High-end Karaoke room

Technical Specifications

Power Handling (AES Standard) 1300W RMS / 5200W Peak
Nominal impedance 8 ohms
Frequency response (-6dB half space, no EQ) 34~1500Hz
Average Sensitivity 97dB/W/m (40~150Hz)
Maximum Calculated SPL @ 1m 128dB RMS / 134dB Peak
Nominal Directivity (-6dB) Omidirectional in usable range
Recommended low cut filter 30Hz 24dB/oct
Low Frequency driver Custom CELTO Acoustique 18″ with Ferrite magnet, 4” In/Out Voice coil
Crossover No, only use in active mode with external electronic crossover
Flying hardware No
Connectors 2x NEUTRIK Speakon® NL4MP (1+/1- Input & Link, 2+/2- Link)
Pole mount 20mm thread top hat (2pcs)
Cabinet CNC made with tongue and grove assembly, 18mm Outdoor grade birch plywood
Finish Black Textured Waterborne Coating | PU foam behind front grill
Size (WxHxD) 570x632x650mm net, 695x745x760mm gross
Weight 44kg net, 51kg gross
