Description

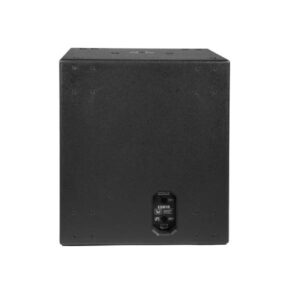

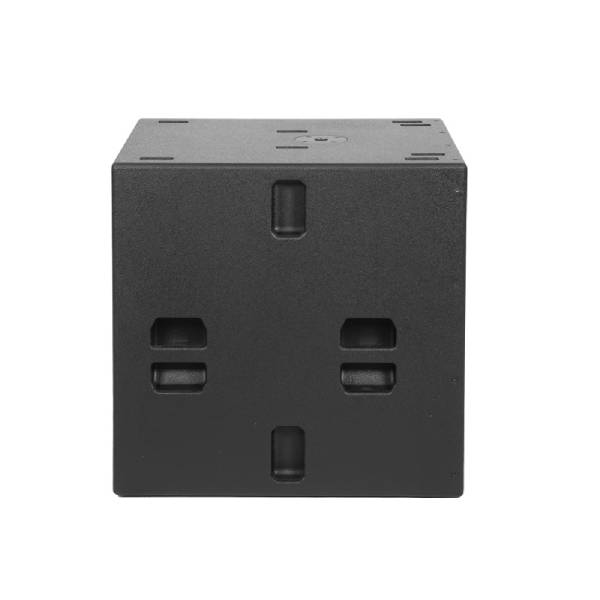

CSW118 subwoofer is suitable for bass reinforcement for main PA systems,
touring or permanent installations for small to large stages, indoor or outdoor live performances.
Suitable for:
- Stadium and arena
- Multi-functional room
- Auditorium and Theater
- Night club
- Bar
- High-end Karaoke room
Technical Specifications
| Power Handling (AES Standard) | 1300W RMS / 5200W Peak |
| Nominal impedance | 8 ohms |
| Frequency response (-6dB half space, no EQ) | 34~1500Hz |
| Average Sensitivity | 97dB/W/m (40~150Hz) |
| Maximum Calculated SPL @ 1m | 128dB RMS / 134dB Peak |
| Nominal Directivity (-6dB) | Omidirectional in usable range |
| Recommended low cut filter | 30Hz 24dB/oct |

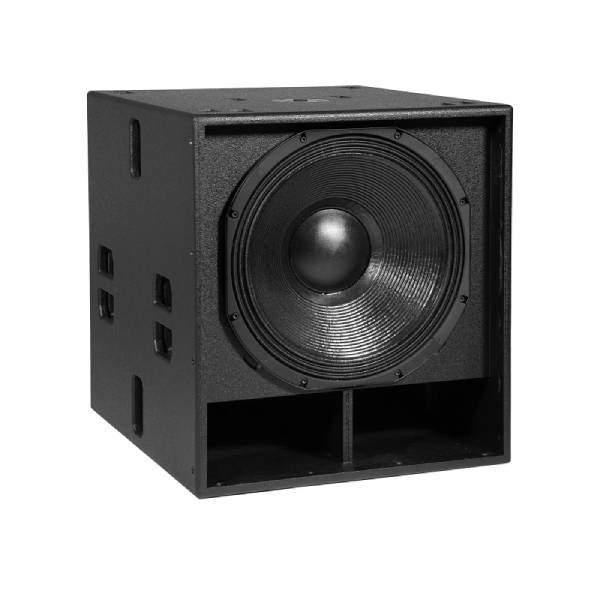

| Low Frequency driver | Custom CELTO Acoustique 18″ with Ferrite magnet, 4” In/Out Voice coil |
| Crossover | No, only use in active mode with external electronic crossover |
| Flying hardware | No |
| Connectors | 2x NEUTRIK Speakon® NL4MP (1+/1- Input & Link, 2+/2- Link) |
| Pole mount | 20mm thread top hat (2pcs) |
| Cabinet | CNC made with tongue and grove assembly, 18mm Outdoor grade birch plywood |
| Finish | Black Textured Waterborne Coating | PU foam behind front grill |
| Size (WxHxD) | 570x632x650mm net, 695x745x760mm gross |
| Weight | 44kg net, 51kg gross |
