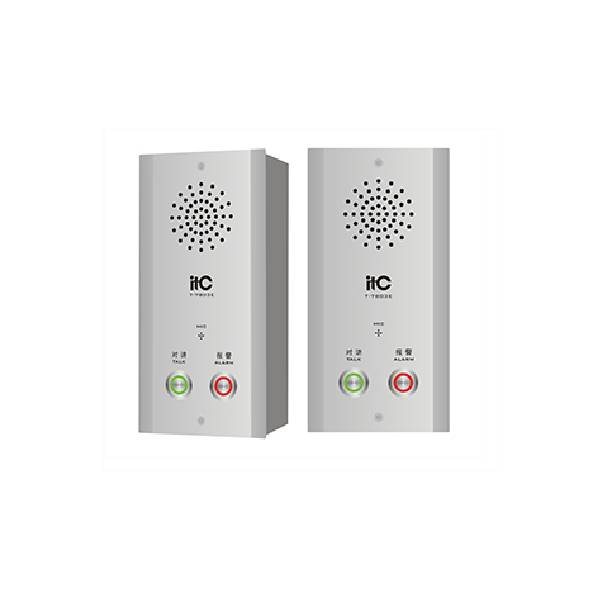

T-7803/7803E IP Network intercom Terminal

With 2 network port to support exchange expansion mode and redundant backup mode and the speed is up to 100M;

Various network access method, including DHCP access, ADSL access, fixed IP address access, etc;

Built-in 24Bit professional sound card to realize hifi playing, and the audio stream is up to 768 Kpbs;

With 1 Line input; built in digital preamp; with the function of user-custom priority;

SKU: T-7803 Category: Tag: Brand: ITC


Product Description:

  • Based on Luna cloud server; safe and stable; continuous operation 24/7
  • 1 alarm button and dialogue button; Supports multiple SM trigger functions including email trigger, designated area alarm, connection with linkage devices, etc
  • Highly sensitive internal microphone, 3W Hi-fi Speaker and 20W amplifier circuit
  • Meets IP55 protective rating;
  • Tamper alarm function
  • Supports remote server management; offline playing from Media library
  • 1 Line input, 1 MIC input, front output, 1 EMC input, 1 monitoring mic and digital preamp; 2 short inputs and 2 short outputs for connection to third-party system

Technical Parameters

Model T-7803E
Transmission Speed 1000Mbps/100Mbps/10Mbps
Protocol TCP/IP, UDP, IGMP
Audio Format MP3, WMA, WAV
Audio Type 16Bit Stereo Audio in CD level
Sampling Rate 8K to 48K
Bit Rate 8K to 768Kbps
Power Consumption 20W
Power Consumption of Standby <3W
Frequency Response 20Hz to 20KHz, ±1dB
T.H.D. ≤0.1%
S/N Ratio ≥65dB
Short Input 0V/3.3V, support dry contact input
Short Output <3A/120V
Working Temp. 5℃ to 40℃
Working Relative Humidity 20% to 80%, Non Condensing
Dimension 86x172x33mm
Weight 1Kg

Additional information

Rated Power (RMS)
