Description

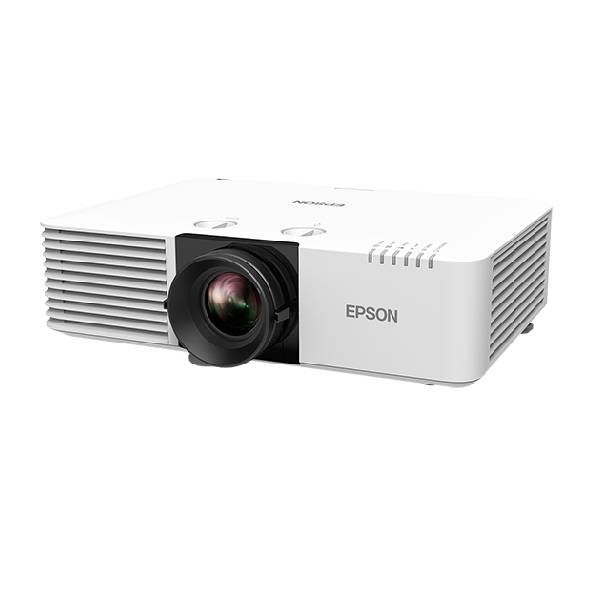

Epson EB-L730U Product Features
- Laser Light Source – Experience astonishing quality and reliability
- Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
- NEW Powerful Brightness – Up to 7,000 Lumens colour brightness and 7,000 Lumens white brightness
- WUXGA High Definition Resolution – Enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
- Extraordinary sharpness and detail – Up to 2,500,000:1 dynamic contrast ratio
- Virtually Maintenance-free Operation – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours†;
- Bright and Compact – The flat, simplified design makes the EB-L730U an ideal fit for a range of environments, including modern offices and luxury interiors
- NEW Flexible Display Options and Sizes – Deliver impactful sessions with displays up to 450 inches in 16:6 wide aspect ratio
- NEW Wireless Screen Sharing – With optional ELPWP10 screen sharing device
- NEW Image Enhancement Features – Experience crisp images with super resolution and detail enhancement technology
- Content playback – Save videos and photos to USB flash memory and project them instantly without the need for a PC
- 360° Installation – Install on any plane, from horizontal to vertical and everything in-between
- Manual Lens Shift, Zoom and Focus– Up to ±50 percent vertical and ±20 percent horizontal manual lens shift
- HDBaseT– Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m
- Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment
- 5 Year Projector Warranty– A class leading 5 year warranty**
Epson EB-L730U Technical Specifications
| PRODUCT NAME | Epson EB-L730U | ||
| PRODUCT CODE | V11HA25053 | ||
| TECHNOLOGY | |||
|---|---|---|---|
| Projection System | 3LCD | ||
| LCD Panel | 0.67-inch | ||
| IMAGE | |||
| Light Source | Laser Diode | ||
| Resolution | WUXGA | ||
| Colour Light Output | 7,000 Lumens | ||
| White Light Output | 7,000 Lumens | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 2,500,000:1 | ||
| LD Input Power | 236 W | ||
| Keystone Correction (Standard Lens) | Vertical: ±30° Horizontal ±30° |
||
| Lens Shift (Standard Lens) | Vertical: ±50° Horizontal ±20° |
||
| OPTICAL | |||
| Zoom | 1 – 1.6 (Optical) | ||
| Screen Size (Standard Lens) | 50″ to 500″ | ||
| Projection Distance (Standard Lens) | 80″ screen 2.33 m – 3.78 m | ||
| Throw Ratio | 1.35 (Zoom:Wide) 2.20 (Zoom:Tele) |
||
| Projection Lens F Number | 1.5 – 1.7 | ||
| Projection Lens Focal Length | 20.0mm – 31.8mm | ||
| Focus Method | Manual | ||
| CONNECTIVITY | |||
| Input: Computer | 2 x D-sub 15-Pin (RGB) 1 x USB 2.0 type B |
||
| Input: Digital | 2 x HDMI, 1 x HDBaseT | ||
| Input: Audio | 2 x Stereo mini | ||
| Control: I/O | 1 x RS-232C | ||
| Network: I/O | 1 x RJ45, 1 x USB Type A (for optional ELPAP11*) |
||
| HDBaseT | Yes | ||
| Wireless Connectivity | Included | ||
| Output: Video | 1 x D-sub 15-Pin (RGB) | ||
| Output: Digital | 1 x HDMI | ||
| Output: Audio | 1 x Stereo mini | ||
| ADVANCED FEATURES | |||
| Built-in Speaker | 10W | ||
| EPSON Projector Management (Network & Control) |
Yes | ||
| EPSON iProjection (Multi-PC Projection) |
Yes | ||
| EPSON Professional Tool | Yes | ||
| EPSON Projector Content Manager | Yes | ||
| Wireless LAN Enterprise Security | Yes | ||
| Miracast | Yes | ||
| 4K Enhancement | – | ||
| Lens Position Memory | – | ||
| Split Screen | Yes | ||
| Edge Blending | – | ||
| Curved Screen Projection | – | ||
| Frame Interpolation | – | ||
| Super Resolution | Yes | ||
| Detail Enhancement | Yes | ||
| 360 Degress Projection | Yes | ||
| Content Playback | Yes | ||
| Instant Off | Yes | ||
| Direct Power On | Yes | ||
| Security | Kensington®-style lock provision Wireless LAN Unit Lock Security cable hole |
||
| Colour Modes | Dynamic Presentation Cinema sRGB DICOM SIM Multi-Projection |
||
| GENERAL | |||
| Dimensions D x W x H (Including Feet) | 339 x 440 x 136 mm | ||
| Weight | 8.4 Kg | ||
| Power Consumption: LD On | 345 W | ||
| Power Consumption: Standby | 2.0 W | ||
| Noise Level (Normal/Eco) | 38 / 27 dB | ||
