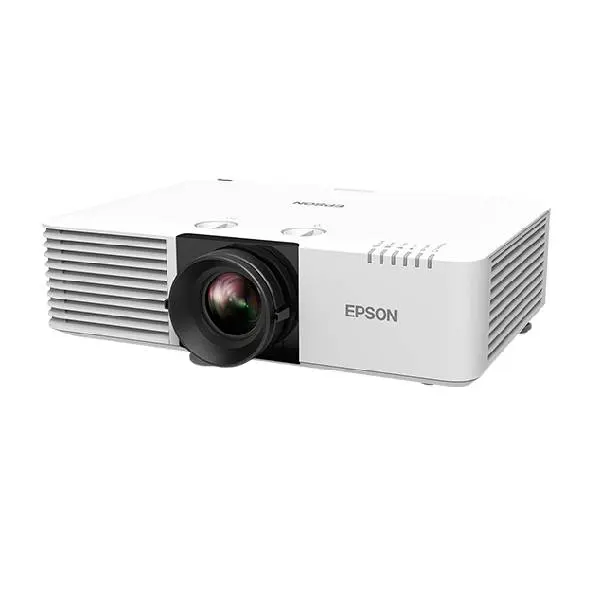

Description
Epson EB-L630U Features
- Laser Light Source – Experience astonishing quality and reliability
- Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
- NEW Powerful Brightness – Up to 6,200 Lumens colour brightness and 6,200 Lumens white brightness
- WUXGA High Definition Resolution – Enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
- Extraordinary sharpness and detail – Up to 2,500,000:1 dynamic contrast ratio
- Virtually Maintenance-free Operation – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours†;
- Bright and Compact – The flat, simplified design makes the EB-L630U an ideal fit for a range of environments, including modern offices and luxury interiors
- NEW Flexible Display Options and Sizes – Deliver impactful sessions with displays up to 450 inches in 16:6 wide aspect ratio
- NEW Wireless Screen Sharing – With optional ELPWP10 screen sharing device
- NEW Image Enhancement Features – Experience crisp images with super resolution and detail enhancement technology
- Content playback – Save videos and photos to USB flash memory and project them instantly without the need for a PC
- 360° Installation – Install on any plane, from horizontal to vertical and everything in-between
- Manual Lens Shift, Zoom and Focus– Up to ±50 percent vertical and ±20 percent horizontal manual lens shift
- HDBaseT– Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m
- Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment
- 5 Year Projector Warranty– A class leading 5 year warranty**
Technical Specifications
PRODUCT NAME | Epson EB-L630U | ||
PRODUCT CODE | V11HA26053 | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | 3LCD | ||
LCD Panel | 0.67-inch | ||
IMAGE | |||
Light Source | Laser Diode | ||
Resolution | WUXGA | ||
Colour Light Output | 6,200 Lumens | ||
White Light Output | 6,200 Lumens | ||
Native Aspect Ratio | 16:10 | ||
Contrast Ratio | 2,500,000:1 | ||
LD Input Power | 219 W | ||
Keystone Correction (Standard Lens) | Vertical: ±30° Horizontal ±30° |
||
Lens Shift (Standard Lens) | Vertical: ±50° Horizontal ±20° |
||
OPTICAL | |||
Zoom | 1 – 1.6 (Optical) | ||
Screen Size (Standard Lens) | 50″ to 500″ | ||
Projection Distance (Standard Lens) | 80″ screen 2.33 m – 3.78 m | ||
Throw Ratio | 1.35 (Zoom:Wide) 2.20 (Zoom:Tele) |
||
Projection Lens F Number | 1.5 – 1.7 | ||
Projection Lens Focal Length | 20 mm – 31.8 mm | ||
Focus Method | Manual | ||
CONNECTIVITY | |||
Input: Computer | 2 x D-sub 15-Pin (RGB) 1 x USB 2.0 type B |
||
Input: Digital | 2 x HDMI, 1 x HDBaseT | ||
Input: Audio | 2 x Stereo mini | ||
Control: I/O | 1 x RS-232C | ||
Network: I/O | 1 x RJ45, 1 x USB Type A (for optional ELPAP11*) |
||
HDBaseT | Yes | ||
Wireless Connectivity | Included | ||
Output: Video | 1 x D-sub 15-Pin (RGB) | ||
Output: Digital | 1 x HDMI | ||
Output: Audio | 1 x Stereo mini | ||
ADVANCED FEATURES | |||
Built-in Speaker | 10W | ||
EPSON Projector Management (Network & Control) |
Yes | ||
EPSON iProjection (Multi-PC Projection) |
Yes | ||
EPSON Professional Tool | Yes | ||
EPSON Projector Content Manager | Yes | ||
Wireless LAN Enterprise Security | Yes | ||
Miracast | Yes | ||
4K Enhancement | – | ||
Lens Position Memory | – | ||
Split Screen | Yes | ||
Edge Blending | – | ||
Curved Screen Projection | – | ||
Frame Interpolation | – | ||
Super Resolution | Yes | ||
Detail Enhancement | Yes | ||
360 Degress Projection | Yes | ||
Content Playback | Yes | ||
Instant Off | Yes | ||
Direct Power On | Yes | ||
Security | Kensington®-style lock provision Wireless LAN Unit Lock Security cable hole |
||
Colour Modes | Dynamic Presentation Cinema sRGB DICOM SIM Multi-Projection |
||
GENERAL | |||
Dimensions D x W x H (Including Feet) | 339 x 440 x 136 mm | ||
Weight | 8.4 Kg | ||
Power Consumption: LD On | 345 W | ||
Power Consumption: Standby | 2.0 W | ||
Noise Level (Normal/Eco) | 38 / 27 dB |
