Description

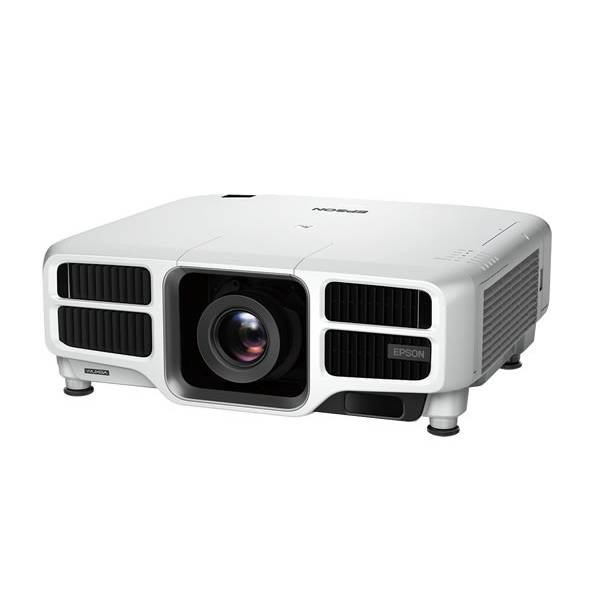

Epson EB-L1490UNL key Features
- Laser Light Source – Experience astonishing quality and reliability.
- Up to 3x Brighter Colours and Reliable Performance1 – 3LCD, 3-chip technology.
- 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more.
- NEW 9,000 Lumens – Deliver captivating images in virtually any venue.
- Colour Uniformity – Keep images consistent and maintenance to a minimum with built-in automatic colour correction.
- Edge Blending – Combine multiple individual images to create one seamless giant image.
- Professional Tool – Efficiently setup multiple projectors straight out of the box with new large venue application software.
- Remote Camera Access – Monitor projection image remotely.
- Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment.
- 3x Digital Connections – Digital quality and distance flexibility.
- HDBaseT – Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m.
- 360° Installation – Install on any plane, from horizontal to vertical and everything in-between.
- Powered Lens Shift, Zoom and Focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings.
- Ten Optional Lenses2 – Choose the ideal powered lens for your venue from a wide range including ultra-short throw and long throw.
- Digital Split Screen – Project two different images from one projector.
Epson EB-L1490UNL Technical Specifications
| PRODUCT NAME | Epson EB-L1490UNL | ||
| PRODUCT CODE | V11HA16953 | ||
| WHAT’S IN THE BOX | |||
|---|---|---|---|
| EB-L1495UNL Projector, 3m 10A Power Cable, Quick Start Guide, Product Manual, Remote Control, 2 x AA Batteries, Cable Cover, HDMI Cable clamp, Warranty card, Registration Card | |||
| TECHNOLOGY | |||
| Projection System | RGB liquid crystal shutter projection system | ||
| LCD Panel | 1.03-inch (D10) | ||
| OPTICAL | |||
| Zoom | 1 – 1.61 (Optical) | ||
| Screen Size (Standard Lens) | 60″ to 1000″ [1.99m to 34.43m] (Zoom: Wide) 60″ to 1000″ [3.26m to 55.63m] (Zoom: Tele) |
||
| Projection Distance (Standard Lens) | 100″ screen 3.37 m – 5.49 m | ||
| Throw Ratio | 1.57 (Zoom:Wide), 2.56 (Zoom:Tele) | ||
| Projection Lens F Number | 1.8 – 2.3 | ||
| Projection Lens Focal Length | 36.00mm – 57.35mm | ||
| Focus Method | Powered | ||
| IMAGE | |||
| Colour Light Output | 9,000 Lumens | ||
| White Light Output | 9,000 Lumens | ||
| Resolution | WUXGA | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 2,500,000:1 | ||
| Light Source | Laser Diode | ||
| LD Input Power | 450W | ||
| Keystone Correction (Standard Lens) | Vertical: ±45° Horizontal ±30° |
||
| Lens Shift (Standard Lens) | Vertical: ±60% (Powered) Horizontal: ±18% (Powered) |
||
| CONNECTIVITY | |||
| Input: Video | 1 x 5BNC | ||
| Input: Computer | 1 x D-sub 15-Pin (RGB) | ||
| Input: Digital | 1 x HDMI, 1 x DVI-D, HDBaseT | ||
| Input: SDI | 1 x BNC | ||
| Input: Audio | 3 x Stereo mini | ||
| Input: Control | 1 x RS232c, 1 x Stereo mini-jack (Remote) | ||
| Input: Network I/O | 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit) | ||
| Input: HDBaseT | 1x RJ45 | ||
| Wireless Connectivity | Optional | ||
| Output: Video | 1 x Monitor Out (via D-sub 15-pin) | ||
| Output: Audio | 1 x Stereo mini | ||
| ADVANCED FEATURES | |||
| EPSON Projector Management (Network & Control) | Yes | ||
| EPSON iProjection (Multi-PC Projection) | Yes | ||
| EPSON Professional Tool | Yes | ||
| Remote Access Camera | Yes | ||
| Wireless LAN | Optional | ||
| 4K Enhancement | Yes | ||
| Lens Position Memory | Yes (10 positions) | ||
| Split Screen | Yes | ||
| Edge Blending | Yes | ||
| Curved Screen Projection | Yes | ||
| Corner Wall Projection | Yes | ||
| Frame Interpolation | Yes | ||
| 360 Degrees Projection | Yes | ||
| Instant Off | Yes | ||
| Direct Power On/Off | Yes | ||
| Security | Kensington®-style lock provision Wireless LAN Unit Lock Security cable hole |
||
| Colour Modes | Dynamic Presentation Cinema BT.709 Natural DICOM SIM Multi-Projection |
||
| GENERAL | |||
| Dimensions D x W x H (Including Feet) | 492 x 586 x 211 mm | ||
| Weight (Including ELPLM15 Lens) | 23.7 kg | ||
| Projector Warranty | 5 Years* | ||
| Power Consumption: LD On | 626W | ||
| Power Consumption: Standby | 2.0W | ||
| Noise Level | Normal/Quiet: 37/30 dB | ||
| *Or 20,000 hours, whichever comes first. | |||
