Description

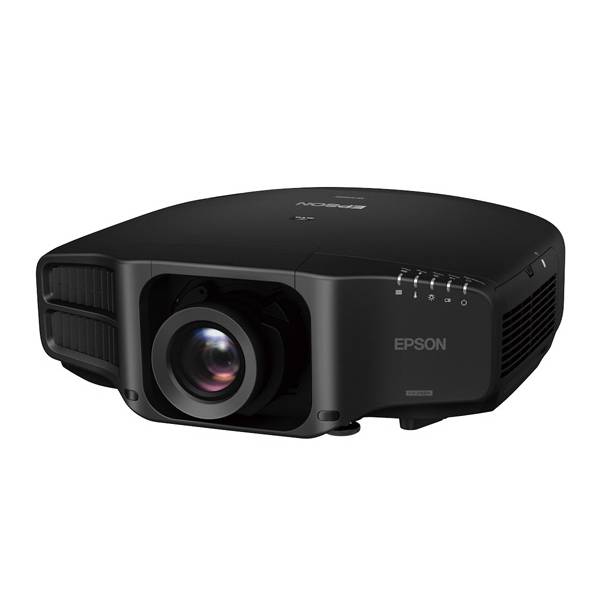

Epson EB-G7905UNL Key Features
- 3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology*
- 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
- Edge Blending – Combine multiple individual images to create one seamless giant image
- 3x Digital connections – Digital quality and distance flexibility
- HDBaseT – Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100m
- 360° Installation – Install on any plane, from horizontal to vertical and everything in between
- Powered lens shift, zoom and focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings
- Ten optional lenses – Choose the ideal powered lens for your venue from a wide range from ultra-short throw to long throw
Epson EB-G7905UNL Technical Specifications
| PRODUCT NAME | Epson EB-G7905UNL | ||
| PRODUCT CODE | V11H749853 | ||
| WHAT’S IN THE BOX | |||
|---|---|---|---|
| EB-G7905UNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Cable Cover, Manual, Projection Software CDROM. (STD Lens not Included) | |||
| TECHNOLOGY | |||
| Projection System | RGB liquid crystal shutter projection system | ||
| LCD Panel | 0.76-inch with D-MLA (D10, C2 Fine) | ||
| OPTICAL | |||
| Zoom | 1 – 1.6 (Optical) | ||
| Screen Size (LM08 Lens) | 50″ to 300″ [1.53m to 9.43m] (Zoom: Wide) 50″ to 300″ [2.48m to 15.10m] (Zoom: Tele) |
||
| Projection Distance (LM08 Lens) | 100″ screen 3.11m – 5m | ||
| Throw Ratio | 1.44 (Zoom:Wide), 2.33 (Zoom:Tele) | ||
| Projection Lens F Number | 1.7-2.3 | ||
| Projection Lens Focal Length | 24mm – 38.2mm | ||
| Focus Method | Powered | ||
| IMAGE | |||
| Colour Light Output | 7,000 Lumens | ||
| White Light Output | 7,000 Lumens | ||
| Resolution | WUXGA | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 50,000:1 | ||
| Lamp Hours | 3,000 hours (Normal) 4,000 hours (ECO) |
||
| Lamp Type | 400 W UHE | ||
| Keystone Correction (LM08 Lens) | Vertical: -45 to +45 degrees Horizontal: -30 to +30 degrees |
||
| Lens Shift | Vertical: -67% to +67% (Powered) Horizontal: -30% to +30% (Powered) |
||
| Tilt Angle | -2 to 10 degrees | ||
| CONNECTIVITY | |||
| Input: Video | 1 x 5BNC | ||
| Input: Computer | 1 x D-sub 15-Pin (RGB) | ||
| Input: Digital | 1 x HDMI, 1 x DVI-D, HDBaseT | ||
| Input: Audio | 3 x Stereo mini | ||
| Input: Control | 1 x RS232c, 1 x Stereo mini (Remote) | ||
| Input: Network I/O | 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit) | ||
| Input: HDBaseT | 1 x RJ45 | ||
| Wireless Connectivity | Optional | ||
| Output: Video | 1 x Monitor Out (via D-sub 9-pin) | ||
| Output: Audio | 1 x Stereo mini | ||
| ADVANCED FEATURES | |||
| EasyMP Network & Control | Yes | ||
| EasyMP Network Projection | – | ||
| EasyMP Multi PC Projection | Yes | ||
| Wireless LAN | Optional | ||
| 4K Enhancement | Yes | ||
| Lens Position Memory | Yes (10 positions) | ||
| Split Screen | Yes | ||
| Edge Blending | Yes | ||
| Curved Screen Projection | Yes | ||
| Corner Wall Projection | Yes | ||
| Frame Interpolation | Yes | ||
| 360 Degress Projection | Yes | ||
| Instant Off | Yes | ||
| Direct Power On/Off | Yes | ||
| Security | Kensington® – style lock provision Wireless LAN Unit Lock Security cable hole |
||
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection | ||
| GENERAL | |||
| Dimensions D x W x H (Including Feet) | 472 x 525 x 189 mm | ||
| Weight | Approx. 12.9kg (Including LM08 Lens) | ||
| Lamp Warranty | 1 Year or 750 Hours* | ||
| Projector Warranty (Excluding lamp) | 3 Years** | ||
| Power Consumption: Lamp on | 572W | ||
| Power Consumption: Standby | 2.3W | ||
| Noise Level | Normal/Eco: 39/31 dB | ||
