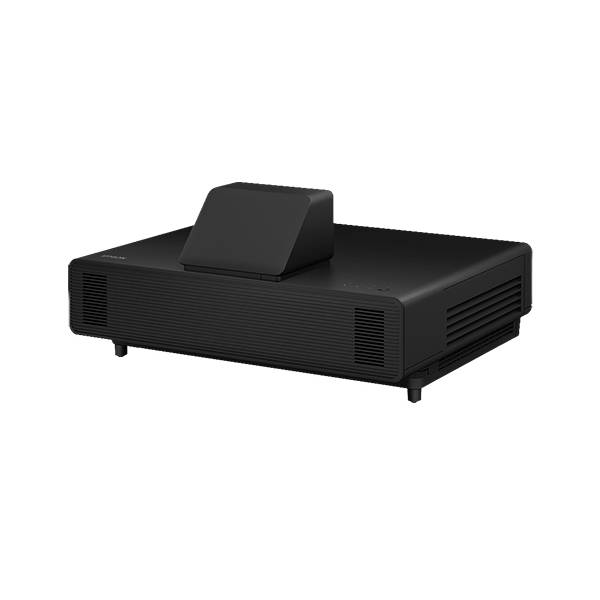

Epson EB-805F

$4,434.00 Excl. GST

  • Full HD2 display up to 130″ – For an optimal viewing experience and clear readability — over 2x as big as a 70″ flat panel
  • Ultra-wide 16:6 image – Maximise the impact of digital signage to its ultra-wide display up to 120 inches
  • Zero Offset lens – Produces an image up to 130 inches without creating a shadow at a throw distance of 80.3cm, allowing the projector to be installed in both large and small spaces
  • Create head-turning digital signage – illuminate and project on virtually any surface or material, for digital art, commercial signage and décor applications
  • Blends in discretely – sleek design easily blends into its surroundings, offering vertical and horizontal rotation, with flexible placement on floors and mounting on walls or ceilings
Category: Brand: Epson

Description

Key Features

  • 3 x Brighter Colours and Reliable Performance1 – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Bright Images – Up to 5,000 lumens colour/white brightness
  • Break Through Laser Technology – Provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Full HD2 display up to 130″ – For an optimal viewing experience and clear readability — over 2x as big as a 70″ flat panel
  • Ultra-wide 16:6 image – Maximise the impact of digital signage to its ultra-wide display up to 120 inches
  • Zero Offset lens – Produces an image up to 130 inches without creating a shadow at a throw distance of 80.3cm, allowing the projector to be installed in both large and small spaces
  • Create head-turning digital signage – illuminate and project on virtually any surface or material, for digital art, commercial signage and décor applications
  • Blends in discretely – sleek design easily blends into its surroundings, offering vertical and horizontal rotation, with flexible placement on floors and mounting on walls or ceilings
  • Robust management and control tools – via Epson’s Web-based application or over the network with Crestron, Extron and more
  • Scalable, for an array of applications – install multiple EB-805F projectors and utilise Edge Blending technology for versatile, breathtaking displays
  • DIY content creation – comes with templates, effects, colour filters and customisable options; playlist and playback function allow for seamless content management for single or multiple projectors
  • Expansive connectivity – HDBaseT, HDMI, VGA, LAN and USB-A for direct content display and storage when needed

Technical Specifications

PRODUCT NAME EB-805F
PRODUCT CODE V11H923653
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Light Source Laser Diode
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.62-inch (C2fine)
OPTICAL
Zoom 1 – 1.35 (Digital)
Screen Size 65″ to 130″ [39.2 cm to 80.3 cm] @16:9 Wide
61″ to 120″ [39.5 cm to 79.6 cm] @16:6 Wide48″ to 96″ [39.2 cm to 80.3 cm] @16:9 Tele
Projection Distance 80″ screen at 48.7cm
Throw Ratio 0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens F Number 1.5
Projection Lens Focal Length 3.9 mm
Focus Method Manual
Lens Shift N / A
Colour Light Output 5,000 lumens
White Light Output 5,000 lumens
Resolution FHD
Native Aspect Ratio 16:9
Contrast Ratio Over 2,500,000:1
Light Source Laser
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Quick Corner Yes
Edgeblend Yes
Content Playback Yes
Refresh Rate 192 Hz / 240 Hz
*Pixel shifting technology achieves Full HD resolution on screen
CONNECTIVITY
Video I/O – Input 2 x Monitor in (RGB D-sub 15 pin), 1 x RCA in (composite)
Video I/O – Output 1 x Monitor out (RGB D-sub 15 pin)
Digital Input (HDCP2.3), 1 x HDBaseT (RJ45)
Digital Output 1 x HDMI
Audio I/O – Input 3 x Audio In (Stereo Mini)
Audio I/O – Output 1 x Audio out (Stereo Mini)
Control I/O RS-232C (D-sub 9 pin)
USB I/O 2 x Type A (for USB Memory, Firmware update, copy OSD Settings)
1 x Type A (for Power supply only 5V)
1 x Type B (Firmware update, Copy OSD Settings)
Network I/O: 1 x RJ45
Wireless Connectivity Optional (ELPAP11)
Speaker Output 16W
ADVANCED FEATURES
Epson Projection Management Software Yes
Epson Content Management Software Yes
Partner Standards Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Firmware Update Network via LAN cable,
USB A via USB thumb drive,
USB B via USB cable
Copy OSD settings Network via LAN cable,
USB A via USB thumb drive,
USB B via USB cable
Wireless LAN Security WPA2/WPA3-PSK (Personal),
WPA2/WPA3-EAP (Enterprise)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes
Security Kensington® lock provision
Colour Modes Dynamic
Presentation
Cinema
sRGB
BlackBoard
DICOM SIM
Multi-Projection
Wall Mount Optional (ELPMB62)
GENERAL
Dimensions D x W x H (excluding feet) 375 x 458 x 209.5 mm
Weight 9.4 kg
Projector Warranty 3 Years
Power Consumption: Projector on 366 W
Power Consumption: Standby 2 W
Noise Level (Normal / Eco) 36 / 27 dB
WHAT’S IN THE BOX
Main Unit EB-805F Projector
Power Cable 1.8 m
Lens Cap Yes
Remote Control Yes
Battery for Remote Control 2 x AA
Cable Cover Yes
