Description

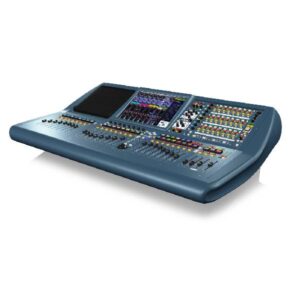

PRO2-CC-IP is live Digital Console Control Centre with 64 Input Channels, 8 Midas Microphone Preamplifiers, 27 Mix Buses and 96 kHz Sample Rate.
Technical Specifications
- Live performance digital console control centre with up to 64 simultaneous input channels
- 8 award-winning Midas microphone preamplifiers
- 27 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rate
- Advanced MCA (mix control association) channel control and navigation
- 8 VCA (variable control association) and 6 POPulation groups
- Up to 28 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 6 multi-channel digital signal processing effects engines
- 28 Midas PRO motorised 100 mm faders
- Daylight viewable 15″ full colour TFT display screen
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad*
- Dual redundant auto-ranging universal switch-mode power supplies
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Technical Specifications
| Sampling rate | 96kHz |
| Latency delay | <2 ms (Input to Master output with no latency compensation) |
| Dynamic range | 106 dB, 22 Hz to 22 kHz |
| Maximum voltage gain | 80 dB, Inputs to Subgroups and Masters 86 dB, Inputs to Aux and Matrix |
| Crosstalk | -100 dB physically adjacent input channels |
| Fader/pan cut off | -100 dB |
| Frequency Response | 0 dB to -1.0 dB, 20 Hz to 20 kHz |
| Gain Error @ 1kHz | ±1.0 dB |
Input CMRR
| 0 dB gain | -60 dB |
| +45 dB gain | -90 dB |
Distortion @ 0 dBu
| 0 dB gain | 0.01% |
| +45 dB gain | 0.03% |
Distortion @ +20 dBu
| 0 dB gain | 0.03% |
| +45 dB gain | 0.03% |
Noise Floor
| 0 dB gain | -85 dBu, 22 Hz to 22 kHz (unweighted) |
| +45 dB gain | -81 dBu, 22 Hz to 22 kHz (unweighted) |
Equivalent Input Noise (EIN)
| 0 dB gain | -85 dBu, 22 Hz to 22 kHz (unweighted) |
| +45 dB gain | -126 dBu, 22 Hz to 22 kHz (unweighted) |
Dynamic Range
| 0 dB gain | 106 dB, 22 Hz to 22 kHz (unweighted) |
| +45 dB gain | 102 dB, 22 Hz to 22 kHz (unweighted) |
Analogue Audio System Inputs
| Mic/Line Inputs | |
| Talk Mic Input | |
| Talk Back Input |
Analogue Audio System Outputs
| Line Outputs | |
| Master Outputs | |
| Monitor Outputs | |
| Talk Output | |
| Headphone Output |
Digital Audio System Inputs and Outputs
| AES3 Inputs | |
| AES3 Outputs | |
| AES50 Audio | |
| Ethernet Control Data | |
| Word Clock Input | |
| Word Clock Output | |
| Video Sync Input | |
| AES3 Sync Input | |
| AES3 Sync Output |
Other Interfaces
| Screen Output | |
| USB Interface | |
| MIDI Interface | |
| Footswitch Input | |
| Lamps | |
| Displays |
Power
| Power Supplies | |
| Power Consumption |
Physical
| Dimensions | 1179.6 mm wide x 730.3 mm deep x 274.9 mm high (46.4″ x 28.8″ x 10.8″) |
| Net weight | 46.0 kg (101.2 lbs) |
| Operating temperature range | +5°C to +40°C |
| Storage temperature range | -20°C to +60°C |
