Description

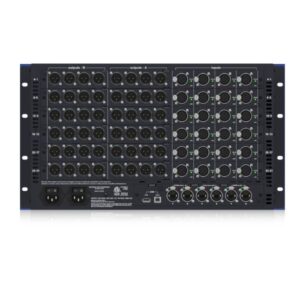

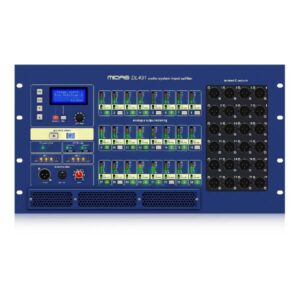

DL431 is 24 Input, 72 Output Active Microphone Splitter with Independent Midas Microphone Preamplifiers.
Product Features
- 24 channel microphone splitter with 2 electronically and 1 transformer balanced outputs per channel
- 3 award-winning Midas microphone preamplifiers per channel with switchable +48 V phantom power
- 2 independent dual redundant AES50 (X and Y) network ports
- Local channel monitoring with integrated headphone amplifier
- 24 bit audio operation with 96 kHz sample rate
- Remote operation up to 80 m via CAT5/5e cable
- All settings programmable from front panel controls or console
- PSU status indicator LEDs and configuration LCD display on front panel
- Features Neutrik etherCON* AES50 network ports
- Rugged 6U rackmount chassis for durability in portable applications
- Dual redundant auto-ranging universal switch-mode power supplies
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Technical Specifications
| Dimensions | 6U x 402 mm deep |
| Net weight | 21.5 kg |
| Power requirements | 100 to 240 VAC, 50 to 60 Hz |
| Operating temperature range | +5°C to +40°C |
| Storage temperature range | -20°C to +60°C |
| Dynamic range (DL431 analogue input to DL431 analogue output) | 124 dB unweighted |
| Dynamic range (DL431 analogue input to DL451 analogue output) | 110 dB unweighted |
Inputs and Outputs
| Analogue inputs | |
| Analogue outputs | |
| Digital (system) outputs |
