Description

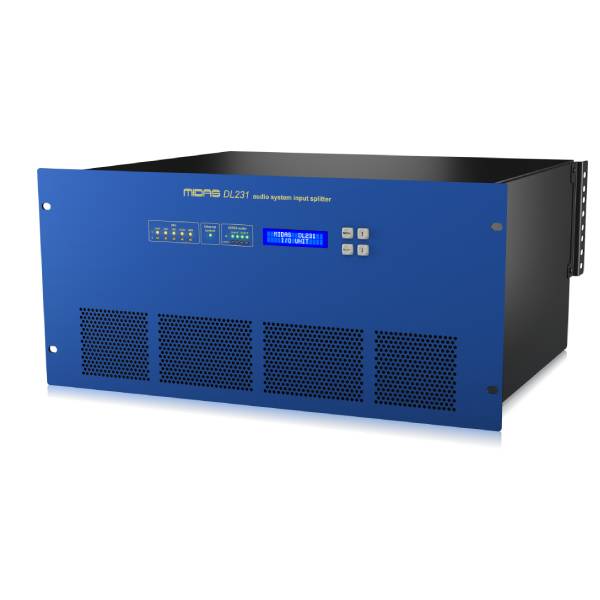

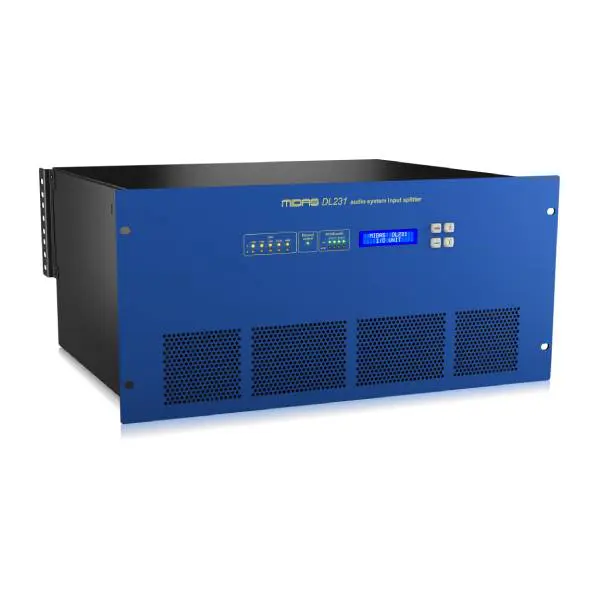

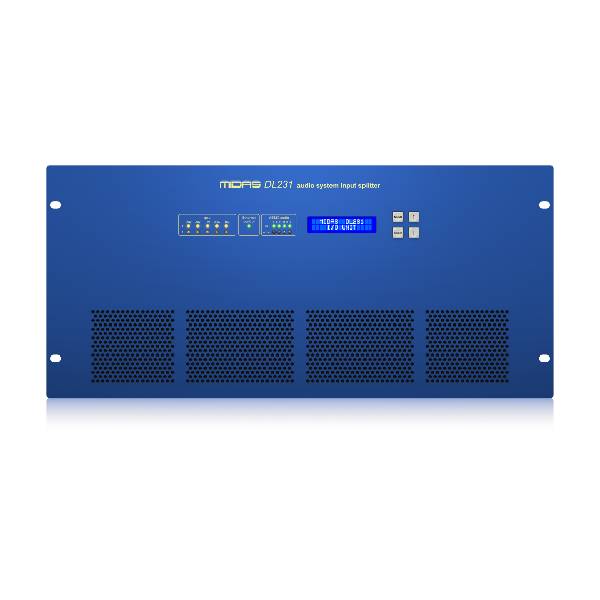

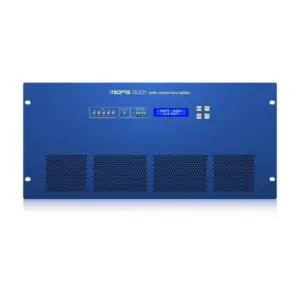

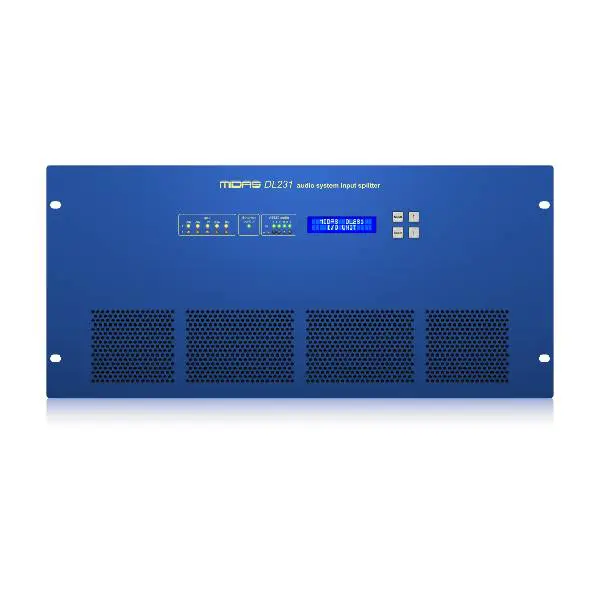

DL231 is 24 Input, 24 Output Active Microphone Splitter with 2 Independent Midas Microphone Preamplifiers per Input.
Product Features
- 2 award-winning Midas microphone preamplifiers per input with switchable +48 V phantom power
- 2 dual redundant AES50 network ports with independent phase-locked loop synchronisation
- 24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports
- Remote operation up to 100 m via CAT5/5e cable
- Selectable 96 kHz or 48 kHz sample rate operation
- All settings programmable from front panel controls or console
- PSU status indicator LEDs and configuration LCD display on front panel

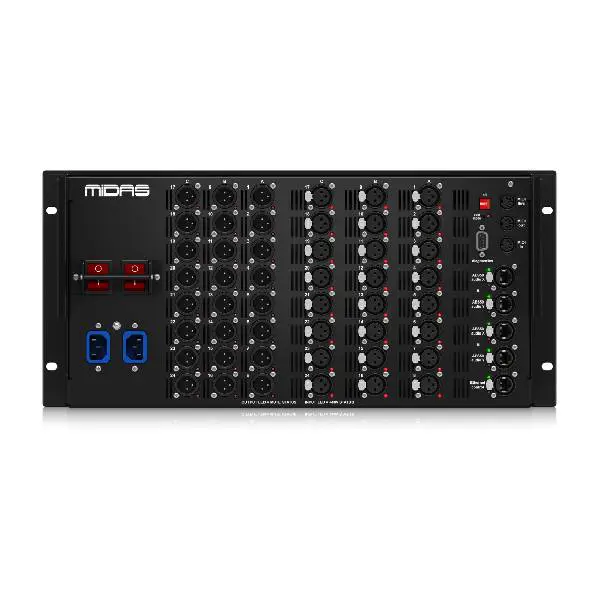

- MIDI In, Out and Thru connectors
- Features Neutrik etherCON* AES50 network ports
- Rugged 5U rackmount chassis for durability in portable applications
- Dual redundant auto-ranging universal switch-mode power supplies
