Technical Specifications

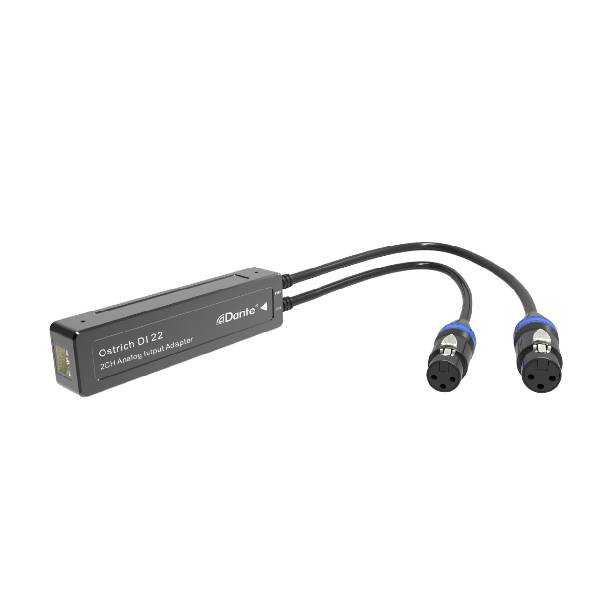

| DI22 、DO22 | |||
| Channel | DI 22 2 ch dante Inputs ,2 ch analog output | Input level(balanced) | Max.18 dBu(DI22) |
| DO 22 2 ch analog Inputs 2 ch dante output | Output level(balanced) | Max.18 dBu(DO22) | |
| Supported network speed | 100/1000Mpbs Ethernet | Frequency response | 20 – 20 kHz，± 0.5dB |
| Sampling rates | 48kHz | Dynamic range | > 100 dB |
| Bit depth | 24 bit | SNR(Signal to NoiseRatio) | > 100 dB |
| Latency | 1ms(default) | THD + N | < 0.01%@4 dBu |
| Ethernet connection | 100BASE-TX(Support PoE) | Floor Noise | -90dBu |
| Input impedance | 20 KΩ (DI22) | Power supply | PoE |
| Output impedance | 100 Ω (DO22) | Power consumption | 2 W |
| DU22 | |||
| Connector | RJ45 and USB class A | USB specification level | ≥ USB 2.0 |
| Sampling | 48 kHz | Power Supply | USB |
