Description
Product Features
- High output SPL and sensitivity
- One 12″ high powered low frequency driver
- One 3″ compression driver
- Built-in power amplifier module
- Mic line selector switch
- Master volume control
- Bass and treble control
- 60º x 40º controlled coverage pattern
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Adjustable flying track on the top and bottom of speaker
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
- Portable system or for permanent installation

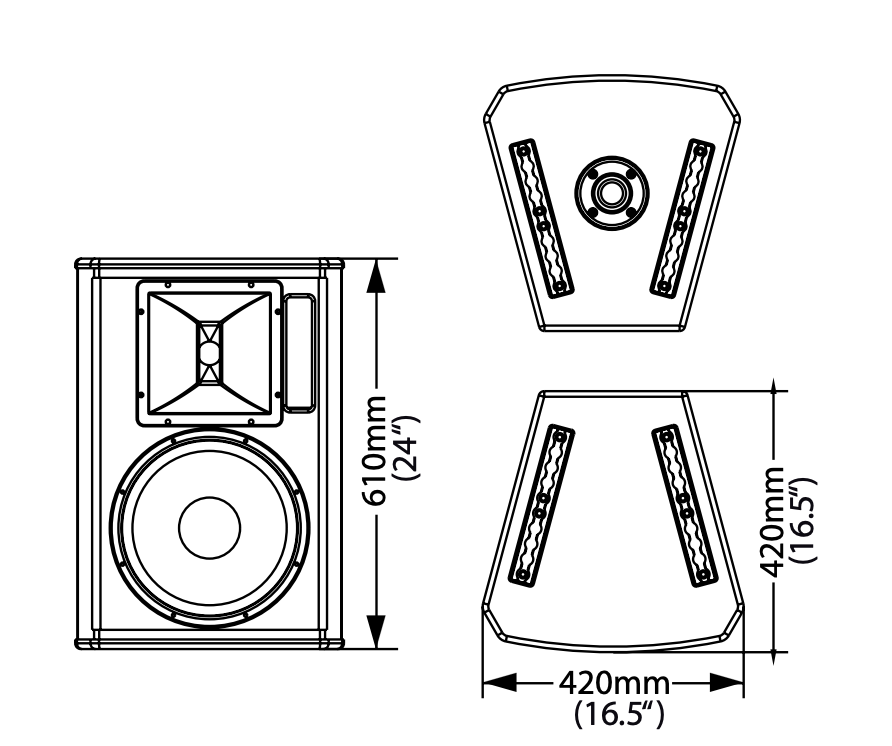

Cabinet Dimensions
Technical Specifications
| Transducers: | 1 x 3” HF Compression Driver + 1 x 12” LF |
|---|---|
| Frequency Response (-3dB): | 55Hz-17KHz |
| Sensitivity (1W/1m): | 97dB |
| Crossover Frequency: | 1.8KHz |
| Dispersion (H x V): | 90º x 40º |
| Rated Power (RMS): | LF 300W, HF 50W (RMS) |
| Rated Impedance: | 8ohm |
| Connector | 2 x NL4 |
| Net Weight: | 29Kg |
| Gross Weight: | 31Kg |
| Dimensions (W x D x H): | 420 x 420 x 610mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
530 x 530 x 730mm |
| Warranty: | 3 Years |
